Provide 2*1.25G SFP ports + 24*10/100/1000M adaptive POE power supply ports. The ports can automatically detect and identify the power receiving devices that conform to the IEEE 802.3AT/AF standard and supply power to them through the network cable, which can be used as a power over Ethernet devices; support POE watchdog function, and smart troubleshooting; support VLAN isolation/normal mode.
Official price: ￥1118/pcs
|
Product model |
NS1318GP-D |
| Standard protocol | IEEE802.3af/at series protocol IEEE802.3 Ethernet Media Access Control Protocol IEEE802.3i 10BASE-T Ethernet IEEE802.3u 100BAST-TX Fast Ethernet IEEE802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3X flow control |
| Port |
16*10/100/1000M POE RJ45 port |
| POE standard |
Standard IEEE802.3AF/AT protocol, the maximum power of a single port is 30W, and the maximum power of the machine is 240W Support overcurrent, overvoltage, short circuit protection Support high power PD soft start Support sequential boot Support certified non-standard PD power receiving |
| Forwarding mode | Store and forward |
| Basic functions | Compliant with IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Compatible with IEEE 802.3af/at compliant Powered Devices (PDs) Compatible with certified non-standard powered devices (PD) Store and forward MAC automatic learning and aging IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Forwarding rate | 10/100/1000Mbps |
| Backplane bandwidth |
36Gbps |
| MAC address table | 8K |
| Access method | CSMA/CD |
| Default working mode |
Normal (default working mode) VLAN port isolation + POE watchdog |
| Size | 270mm(L)* 180mm(W)* 45mm (H) |

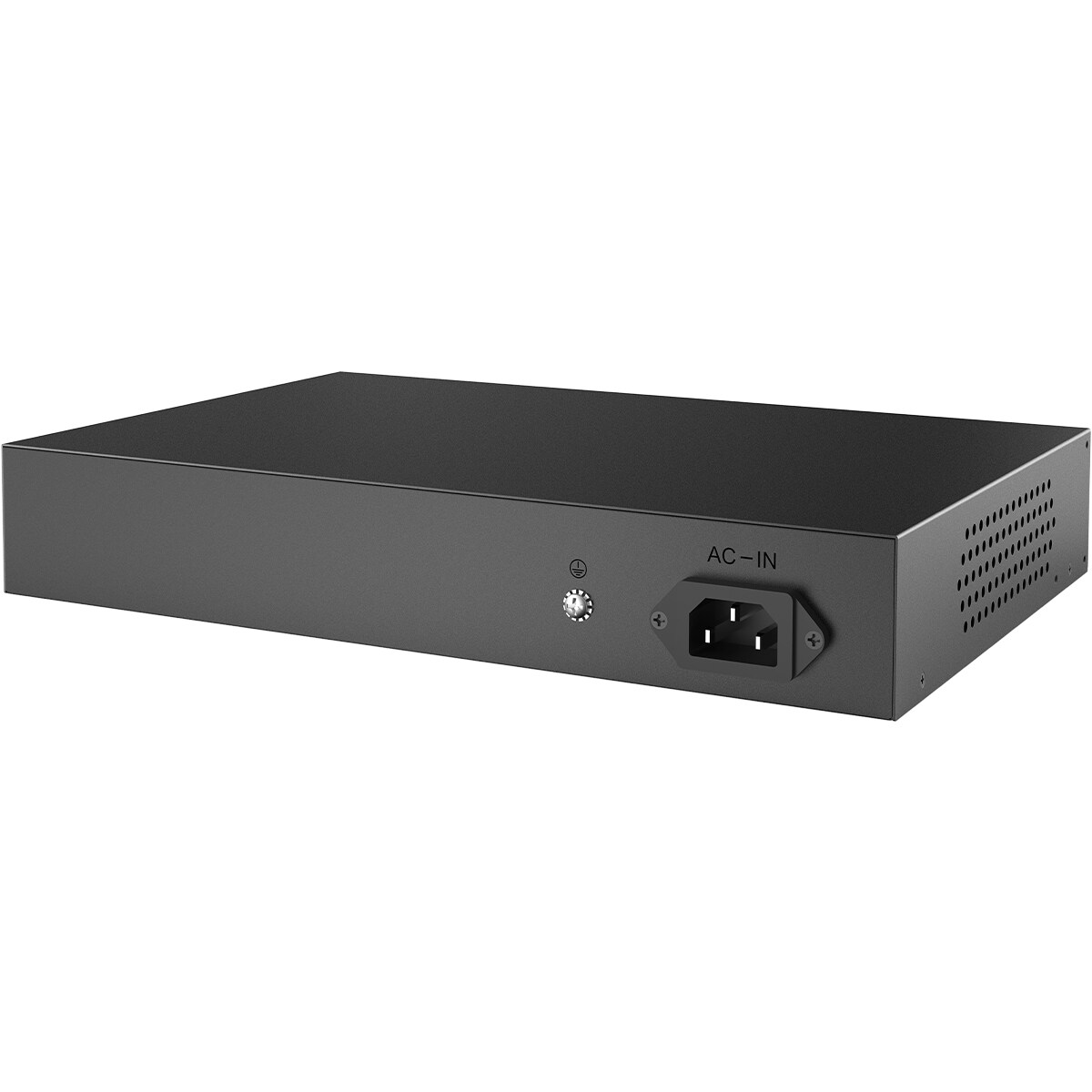

| Power | AC input 100V-250V 50/60Hz |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
