Specially designed for industrial environments
-40°C-85°C industrial class wide temperature design
Industrial class aluminum alloy shell, integrated casting technology

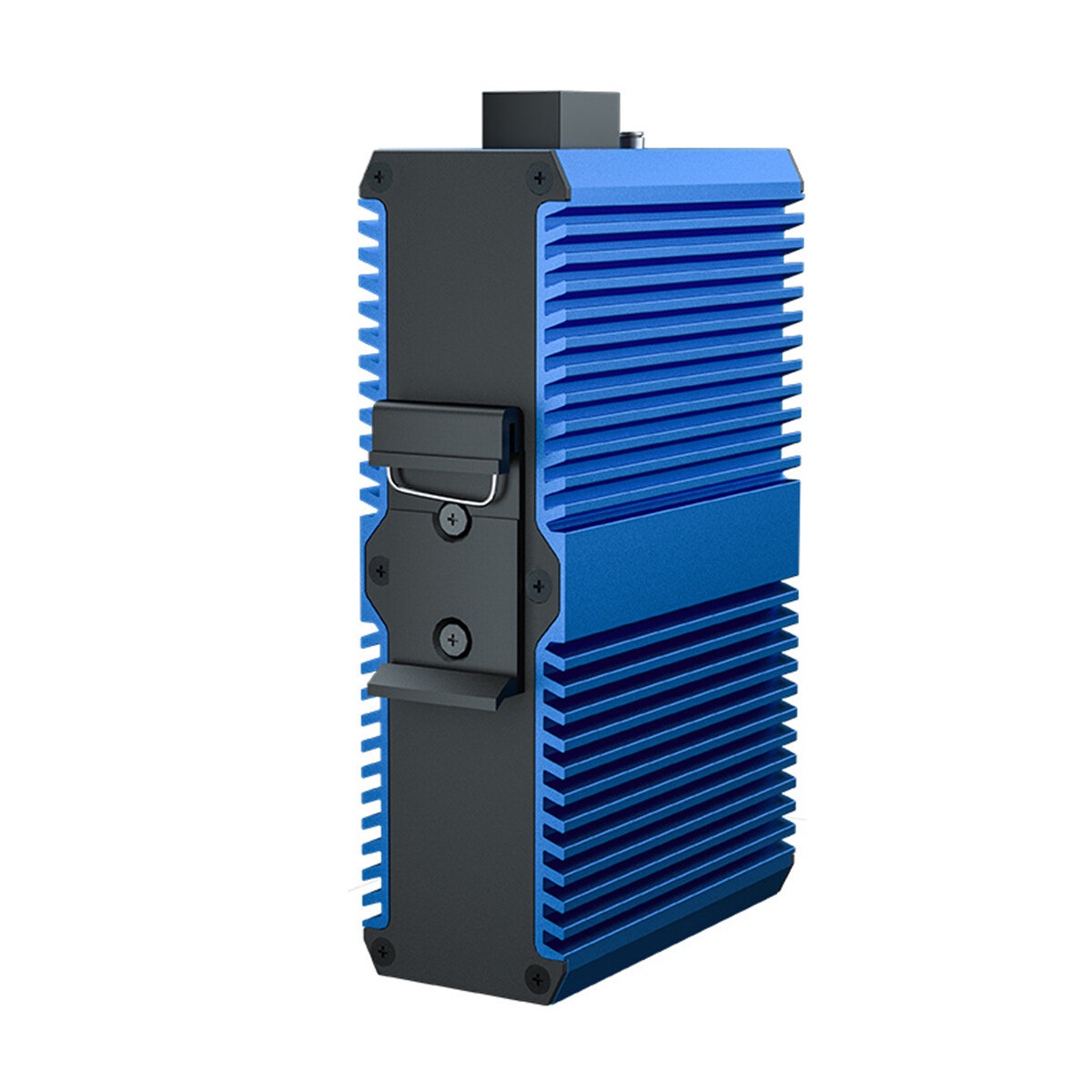

DIN rail installation, construction is simple and flexible
Dual redundant power input, dual anti-static
6KV industrial class lightning protection，Being used extensively

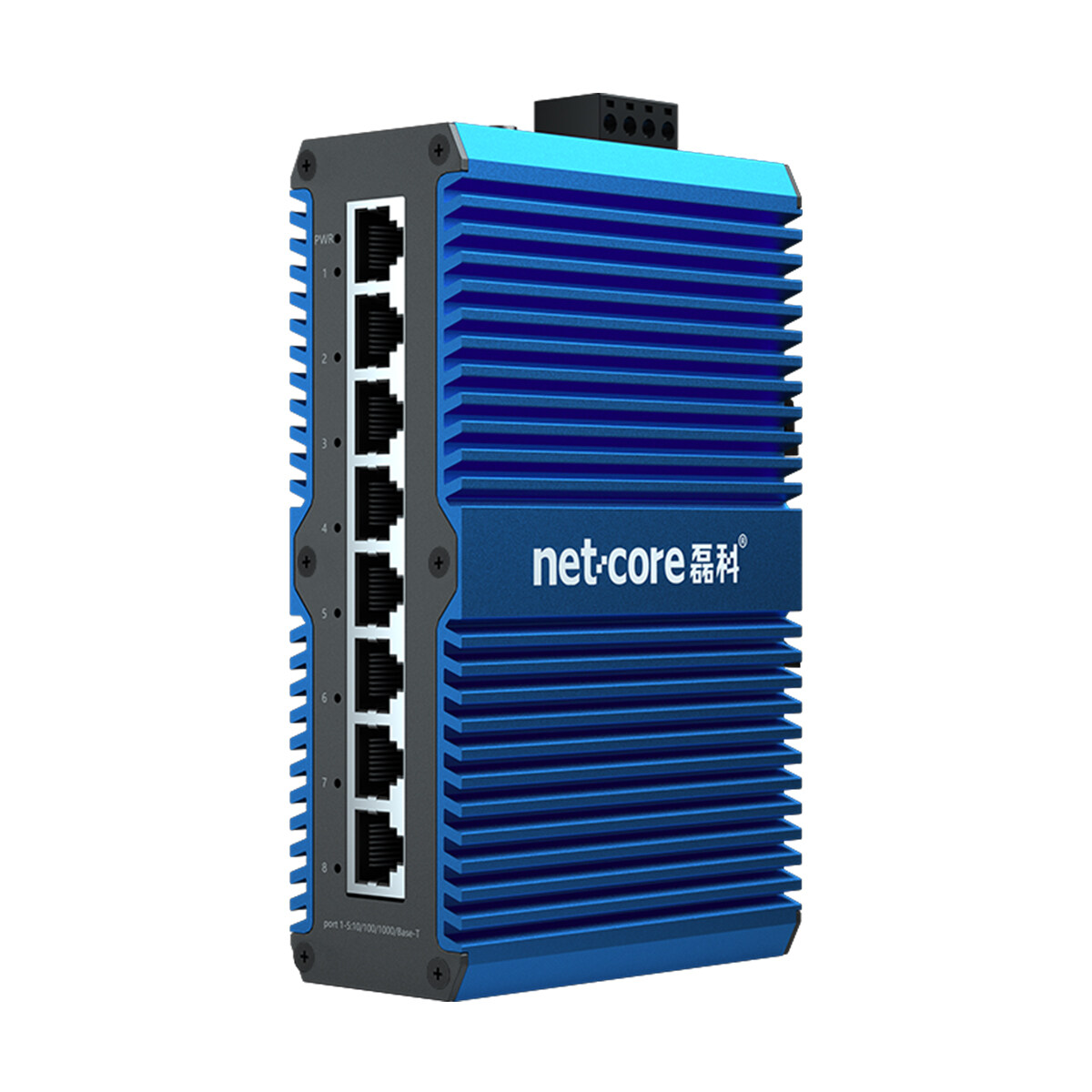

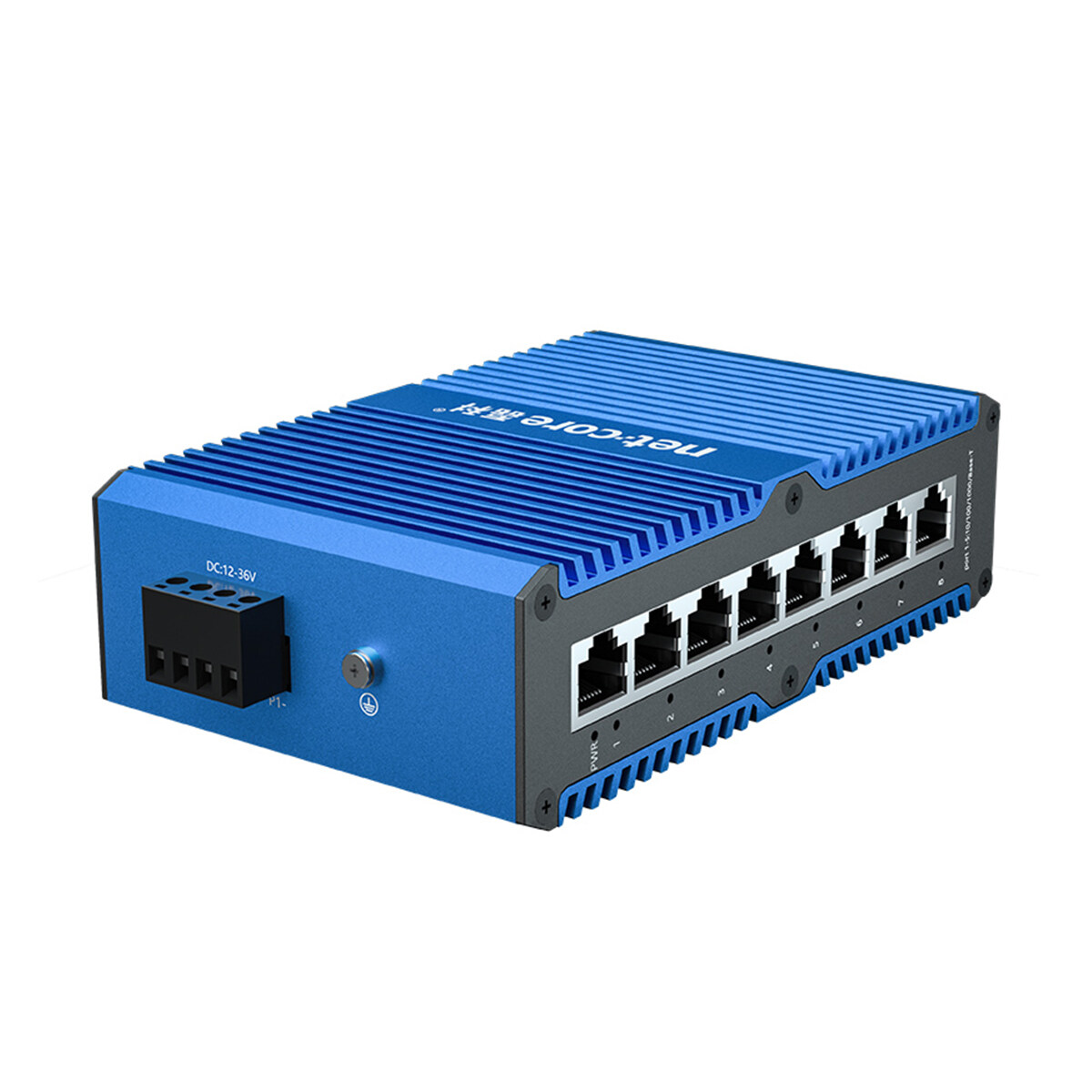

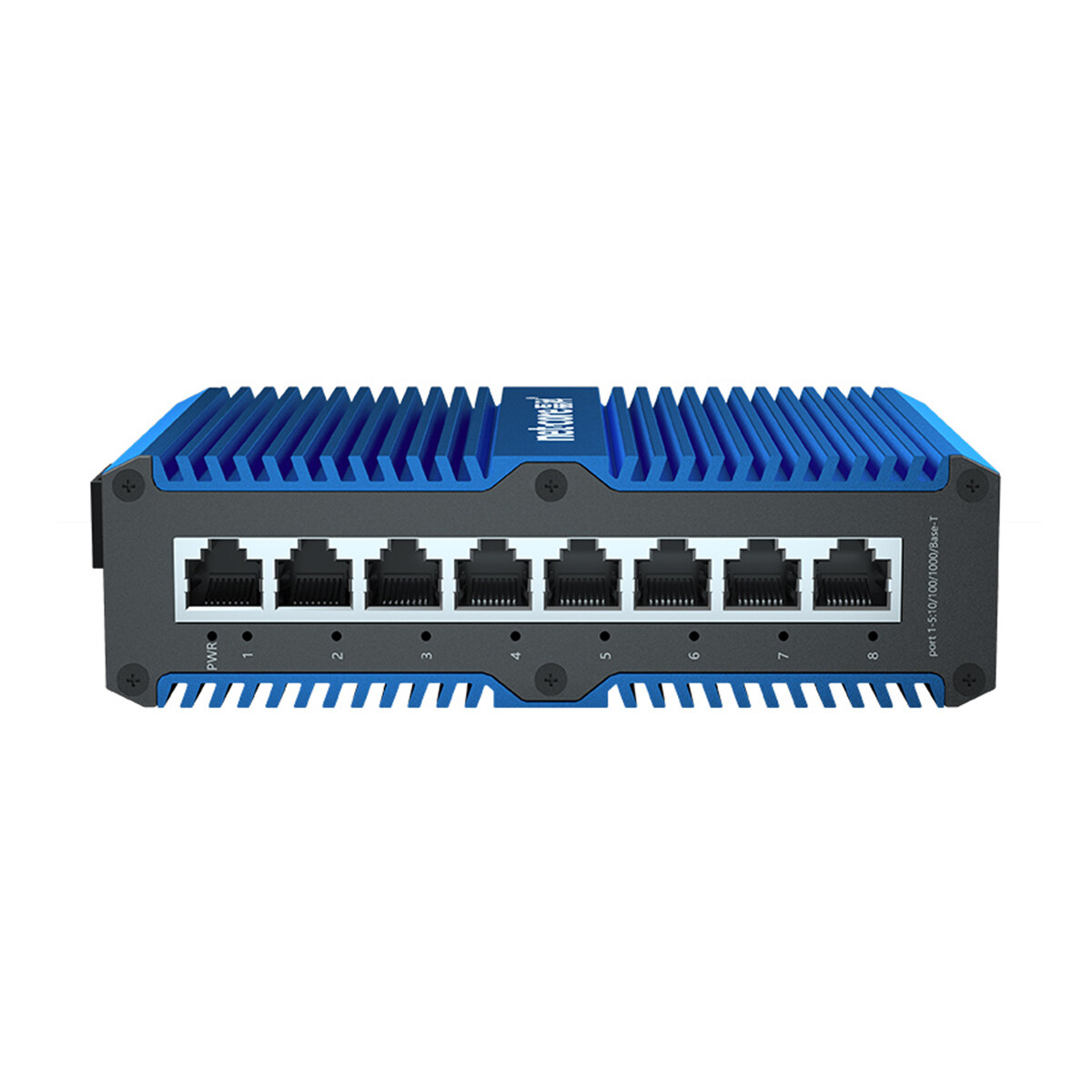

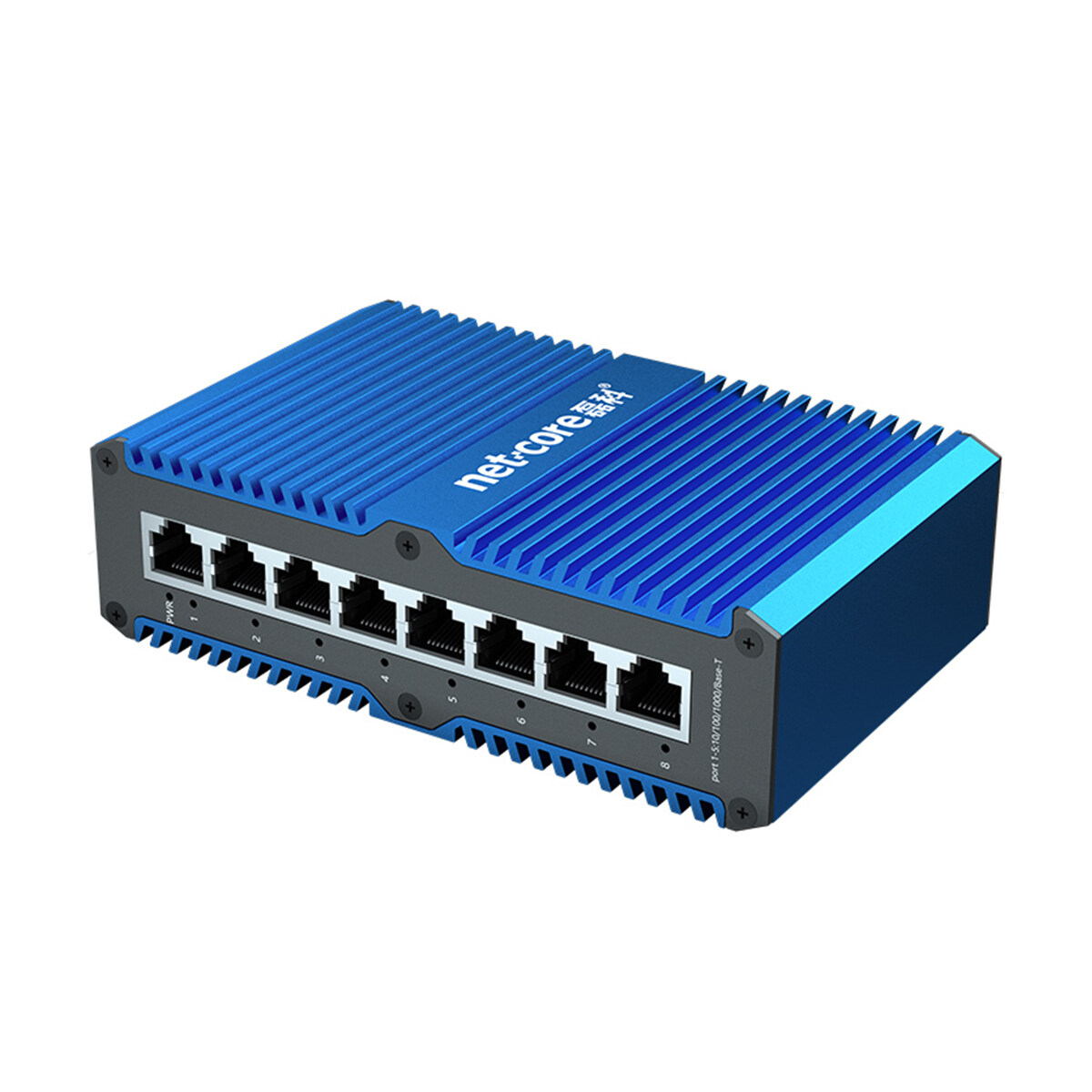

| Product model | IS208 PRO |
| Standards and protocols | IEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| Port | 8*10/100/1000Mbps RJ45 port |
| Backplane bandwidth | 16G |
| MAC address table | 4K |
| Power supply | DC輸入 12~36V |
| Network medium |
100Base-TX: 4 Cat5e or above UTP/STP (≤100m) 100Base-TX: 2 Cat5 or above UTP/STP (≤100m) 10Base-TX: 2 Cat5 or above UTP/STP (≤100m) |
| Size | 140mm*86mm*40mm |
| Working environment |
Operating temperature: -40°C ~ 85°C Storage temperature: -45°C ~ 85°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
